Grade 100 Lifting Chain – EN 818-2 | G100 | 6–26 mm

Grade 100 (G100) lifting chain manufactured by Ever-power Engineer Class Chain Co., Ltd from 23MnMoNiCr54 and 20CrNiMo special alloy steel. Manufactured to EN 818-2, GB/T 20947-2007, and ISO 3077. Available in 12 standard diameters from 6 to 26 mm, covering working load limits from 1,400 kg (6 mm) to 21,200 kg (26 mm). Minimum tensile strength 1,000 N/mm² per link ring. Each chain undergoes 6-metre dynamic load testing at 2–2.5× working load limit and minimum breaking load verification at 4× WLL. Each link permanently marked G100 for grade identification and lifecycle traceability. Surface treatments include galvanising and immersion lacquer coating. Certified to ISO 9001, ISO 14001, Lloyd’s Register, ABS, Bureau Veritas, DNV, and CE.

Category: Hebekette

Request A Quote

[email protected]

Beschreibung

Ever-power Engineer Class Chain Co., Ltd

Grade 100 Lifting Chain

23MnMoNiCr54 / 20CrNiMo Alloy Steel · EN 818-2 · GB/T 20947 · ISO 3077 · G100 Link Marking

High-strength short-link lifting chain for heavy industrial, harbour crane, and deep-rescue applications. Diameter range 6 to 26 mm. 4:1 safety factor. Dynamic load tested at 2–2.5× working load. Each link permanently marked G100 for grade identification and full lifecycle traceability.

View Specifications

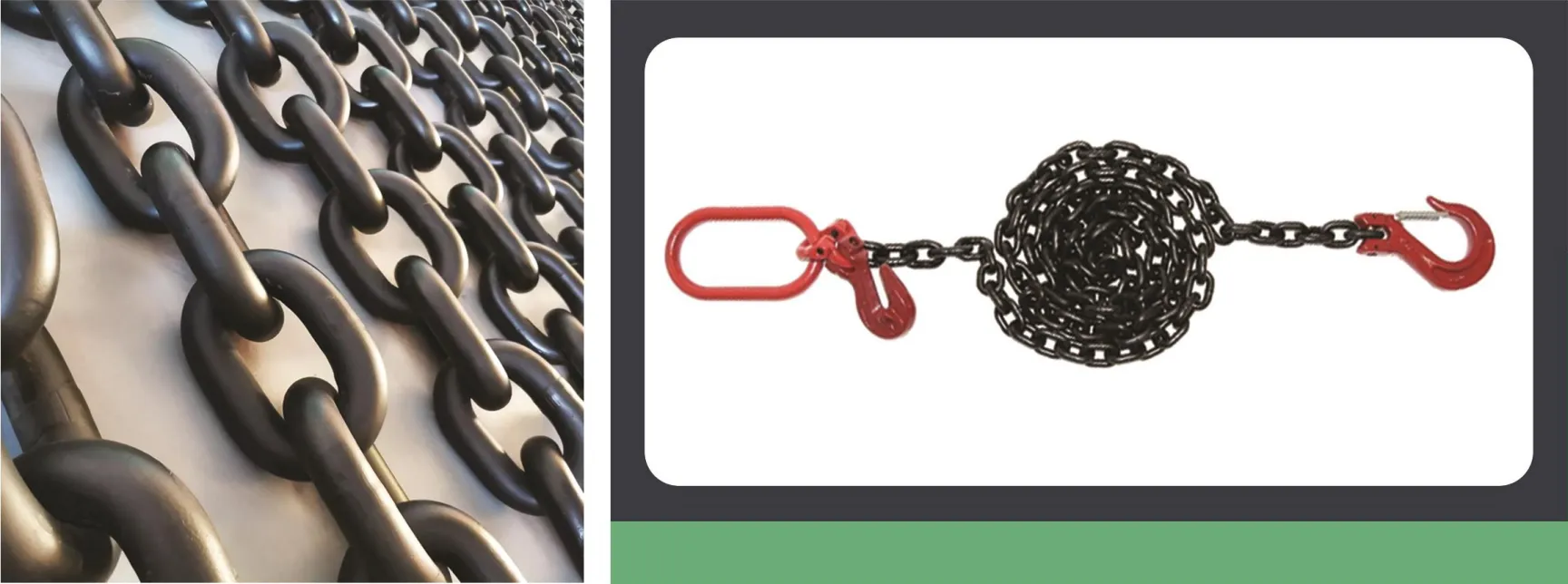

Grade 100 lifting chain G100 23MnMoNiCr54 alloy steel EN 818-2 heavy industrial crane

Certified by | Lloyd's Register · ABS · Bureau Veritas · DNV · ISO 9001 · ISO 14001 · CE Mark

Product Overview

EN 818-2 Grade 100 Chain for Heavy-Duty Lifting

Grade 100 lifting chains are high-strength alloy steel short-link chains manufactured to EN 818-2, GB/T 20947-2007, and ISO 3077, designed for smelting, shipbuilding engineering, and extreme-duty industrial lifting where Grade 80 chains are insufficient. The G100 designation corresponds to a minimum tensile strength of 1,000 MPa per link ring, achieved through precision braiding and multi-stage heat treatment of 23MnMoNiCr54 Und 20CrNiMo special alloy steel.

Ever-power Engineer Class Chain Co., Ltd produces G100 chain in diameters from 6 to 26 mm, covering working load limits from 1,400 kg (6 mm) to 21,200 kg (26 mm). All chains undergo 6-metre dynamic load testing at 2–2.5× working load and a 4× safety factor verification. Each link is permanently stamped with the G100 grade mark for lifecycle traceability.

Surface treatment options include galvanising and immersion lacquer coating for corrosion resistance. Chains are suited to harbour giant cranes, deep-shaft rescue equipment, and nuclear facility modular lifting systems where strict safety margins are mandatory.

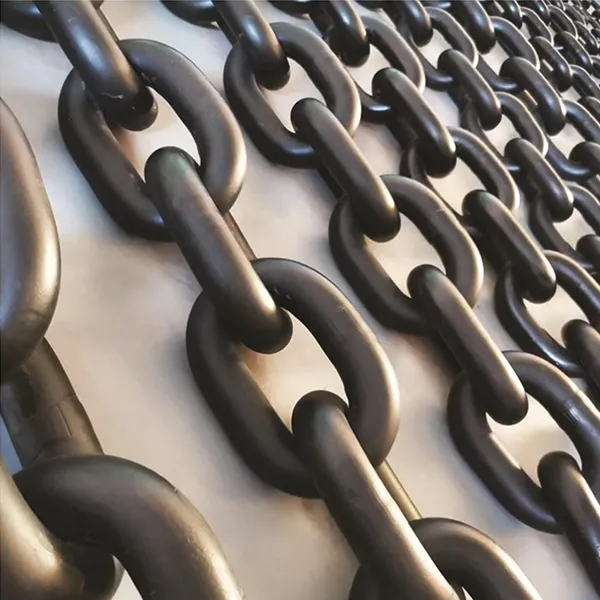

Ever-power Grade 100 G100 chain alloy steel precision manufacturing quality control

Technical Data

Dimensional & Load Specifications

Reference standards: EN 818-2 · GB/T 20947-2007 · ISO 3077 | Loads in kN · WLL in kg · Dimensions in mm · Weight in kg/m

Diameter (mm)	Inner Length (mm)	Min. Inner Width (mm)	Max. Outer Width (mm)	WLL (kg)	Test Load (kN)	Breaking Load (kN)	Per 100 ft (kg)	Weight (kg/m)
6	18	8.7	21.6	1,400	28.0	57	24.4	0.8
7	21	9.5	25.2	1,950	38.5	77	33.1	1.09
8	24	10.9	28.8	2,600	51.0	101	43.7	1.43
10	30	13.5	36	4,000	79.0	157	68	2.23
12	36	16.5	43.2	5,650	111.0	226	97.9	3.21
13	39	17.5	46.8	6,800	134.0	265	114.9	3.77
16	48	21.5	57.6	10,300	201.0	402	174	5.71
18	54	24.1	64.8	13,000	254.5	509	220.3	7.23
19	57	25.6	68.4	14,400	283.0	567	244.9	8.04
20	60	26.8	72.0	16,000	315.0	628	272	8.92
22	66	29.5	79.2	19,400	381.0	760	329.1	10.80
26	78	233.8	96.2	21,200	415.5	831	448	14.70

WLL = Working Load Limit · Dynamic test load = 2–2.5× WLL · Min. breaking load = 4× WLL · Min. elongation at break: 20%

Grade Comparison

Grade 100 vs Grade 80 — Key Differences

Parameter	Grade 80 (G80)	Grade 100 (G100)
Min. tensile strength	800 N/mm²	1,000 N/mm²
Standard	EN 818-2	EN 818-2 · GB/T 20947 · ISO 3077
Material	20mm2 / 25mnv alloy steel	23MnMoNiCr54 / 20CrNiMo
WLL at 16 mm	80 kN	10,300 kg (approx. 101 kN)
Test method	Proof load at 2.5× WLL	6 m dynamic load test at 2–2.5× WLL
Link marking	G80 permanent stamp	G100 permanent stamp · full lifecycle traceability
Typical applications	Chain slings, cranes, hoists, port handling	Harbour giant cranes, deep-shaft rescue, nuclear facility lifting

Construction & Standards

Produktmerkmale

Standards: EN 818-2 · GB/T 20947-2007 · ISO 3077

Manufactured and tested to three concurrent international standards. EN 818-2 governs dimensional tolerances and mechanical properties for lifting chain. GB/T 20947-2007 and ISO 3077 provide additional verification requirements for high-grade chain used in critical lifting environments.

Material: 23MnMoNiCr54 / 20CrNiMo Special Alloy Steel

High-strength special alloy steel grades are used to achieve the 1,000 N/mm² minimum tensile class required for G100 designation. Both alloys provide the combination of tensile strength, ductility, and impact toughness necessary for dynamic lifting duty.

6 m Dynamic Load Testing

Each chain undergoes a 6-metre dynamic load test at 2–2.5× working load, in addition to 4× safety factor breaking load verification. This replicates the load cycles experienced in real lifting operations more accurately than static proof testing alone.

G100 Permanent Link Marking

Every link is permanently embossed with the G100 grade designation and manufacturer code at regular intervals. Marking enables in-service inspection, grade confirmation, and full lifecycle quality traceability without chain removal from the sling assembly.

Size Range: 6 to 26 mm

Twelve standard diameters from 6 to 26 mm cover working load limits from 1,400 kg to 21,200 kg. The range addresses both light crane sling assemblies and the heavy-duty end of the G100 application spectrum.

Surface Treatment Options

Available with galvanising or immersion lacquer coating. Treatment is selected according to the corrosive exposure expected in the operating environment, including outdoor, marine-adjacent, and high-humidity industrial locations.

Grade 100 G100 chain application harbour crane heavy industrial lifting smelting

Application Sectors

Where Grade 100 Lifting Chains Are Used

⚓

Harbour Giant Cranes

Heavy cargo handling at port facilities where maximum lifting capacity per chain diameter is required.

🏗️

Smelting & Shipbuilding Engineering

Extreme-duty lifting in metallurgical and shipyard environments with high thermal and mechanical stress.

🚒

Deep-Shaft Rescue Equipment

Applications where safety margin requirements exceed those achievable with G80 chain at an equivalent diameter.

⚛️

Nuclear Facility Modular Lifting

Installations where strict safety coefficient requirements and full lifecycle traceability are mandatory.

Approvals & Certifications

International Certifications

Ever-power Engineer Class Chain Co., Ltd holds certifications covering lifting, marine, and general industrial chain supply. Full certificate documentation is provided on request during the enquiry process.

✔ Lloyd's Register	✔ ABS
✔ Bureau Veritas	✔ DNV
✔ ISO 9001	✔ ISO 14001
✔ CE Mark	✔ ASME Planner

Ever-power Engineer Class Chain certification documents Lloyd's ABS DNV ISO CE

Häufig gestellte Fragen

What is the difference between Grade 100 and Grade 80 lifting chain?

Grade 100 chain has a minimum tensile strength of 1,000 N/mm², compared to 800 N/mm² for Grade 80. At the same nominal diameter, a G100 chain carries a higher working load limit than a G80 chain. G100 also uses different alloy steel grades (23MnMoNiCr54 / 20CrNiMo) and undergoes 6-metre dynamic load testing rather than static proof testing.

What standards does Grade 100 chain comply with?

Ever-power G100 chains are manufactured and tested to EN 818-2, GB/T 20947-2007, and ISO 3077. These three standards together define dimensional tolerances, material requirements, mechanical property verification, and dynamic load test procedures for Grade 100 lifting chain.

What is the working load limit for 16 mm Grade 100 chain?

The working load limit for 16 mm G100 chain is 10,300 kg. The dynamic test load is 201.0 kN and the minimum breaking load is 402 kN, providing a 4:1 safety factor relative to the WLL.

How is Grade 100 chain tested before dispatch?

Each chain undergoes a 6-metre dynamic load test at 2–2.5× working load limit, and a minimum breaking load verification at 4× WLL. Each link is also permanently stamped with the G100 mark for lifecycle traceability. Test certificates are available on request.

When should I specify G100 instead of G80?

Specify G100 when the required working load limit at a given chain diameter cannot be met by G80, or when the application involves strict safety certification requirements (nuclear facility lifting, deep-shaft rescue, classification society-approved marine crane systems) that mandate the higher tensile class and dynamic test protocol.

What certifications does Ever-power hold?

Ever-power Engineer Class Chain Co., Ltd holds ISO 9001, ISO 14001, Lloyd's Register, ABS, Bureau Veritas, DNV, CE, and ASME Planner approvals. Certificate copies are provided during the enquiry process.
